How to Install the Horseman’s Gravity Latch

The Horseman’s Gravity Latch attaches securely to your pipe gate with no welding required. Before getting started, confirm that the HGL will fit your gate, gather your tools, and choose the installation format that works best for your setup.

View Installation GuideWatch Installation Video

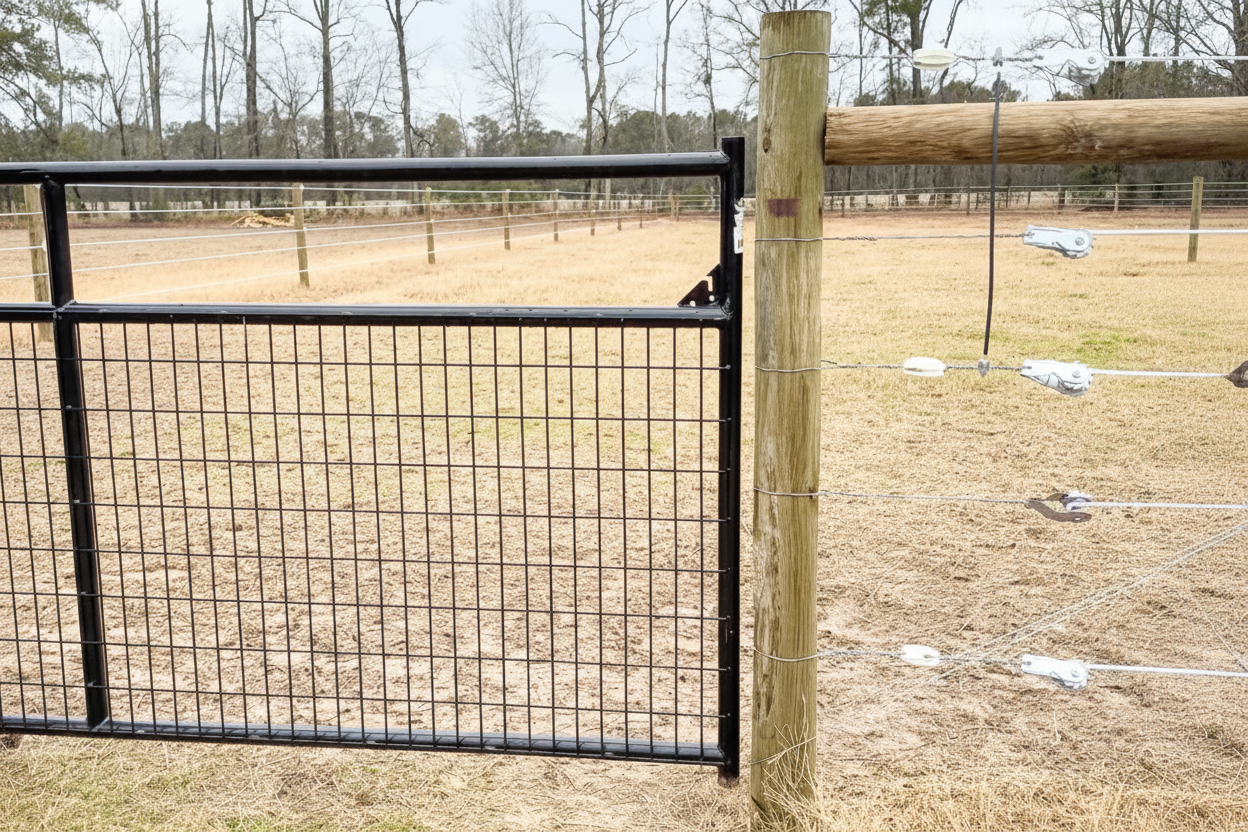

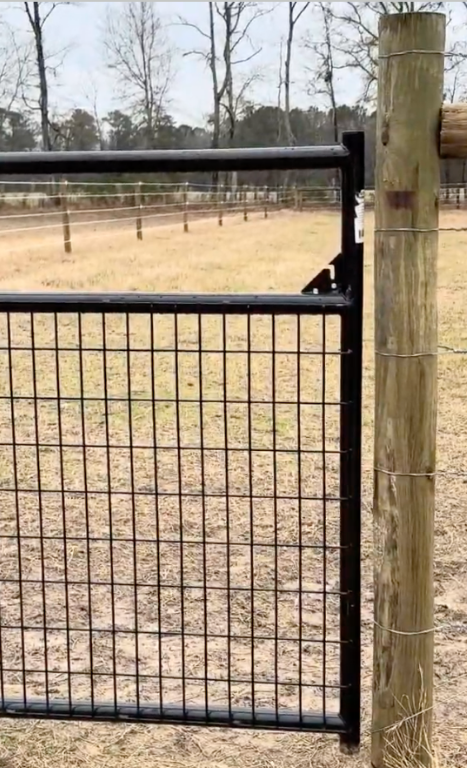

A black metal mesh gate next to a wooden post in an outdoor fenced enclosure with dry grass and trees in the background.

Will the HGL Fit Your Pipe Gate?

The Horseman’s Gravity Latch is designed for round pipe gates. Before installing, confirm that:

  • Your gate is level and swings freely
  • There are at least 10 inches of ground clearance beneath the gate
  • The gap between the gate and post is no more than 1 inch
  • There are 21 inches from the end of the gate to the top-rail fastener

A 1 × 5-inch receiving slot must be created in the latch post.

Not sure whether your gate will work? Contact us before installing, and we’ll help confirm your setup.

Check My Gate

Choose the Right Receiving Slot Setup

The receiving slot mounts to the gate post and catches the latch when the gate closes. Its position depends on where your gate sits in relation to the post and how the gate swings.

Gate Closes Beside Post

A close-up of a white wooden fence post with a large vertical hole being drilled or channeled into it, with a yellow and black cordless drill partially visible on the left. A matching metal fence panel is attached to the right side of the post, and grass is visible in the background.

If your gate closes alongside the gate post, the receiving slot is installed on the side where the latch naturally meets the post.

See Beside Post Setup

Gate Closes Front of Post

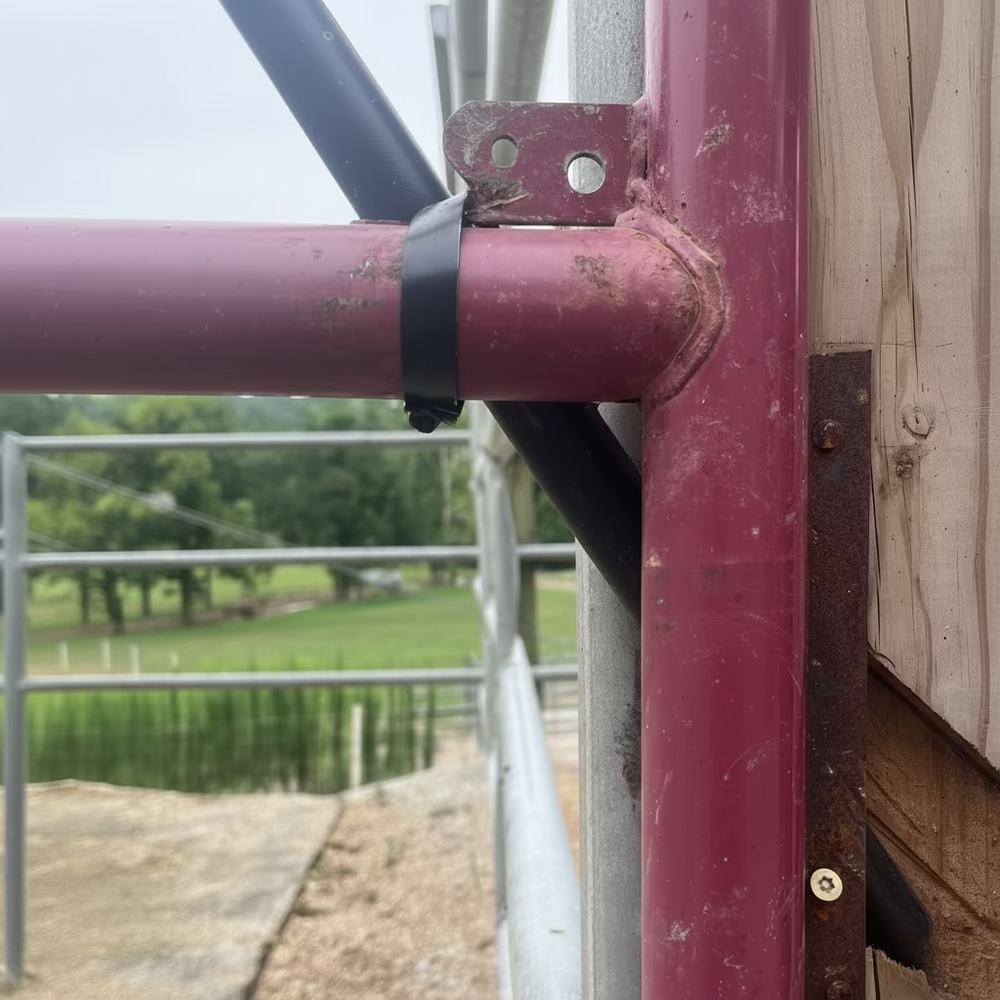

Close-up of a metal gate or fence post assembly with a burgundy-painted tube, black strap, rusted bracket, and wooden post outdoors.

If your gate closes against the post, the receiving slot is cut in front of the post and covered with a metal plate.

See Front Post Setup
